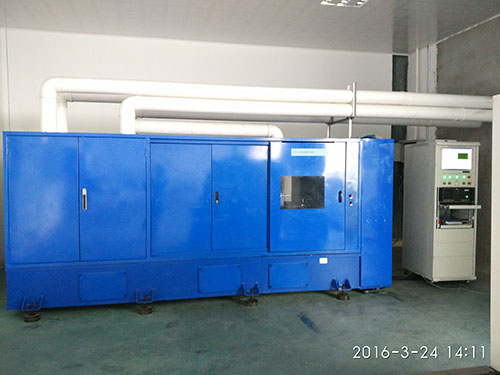

HY202S 輕型車制動器慣性試驗臺

HY202S

 用途: 用于輕、轎車、摩托車制動器和剎車片的摩擦磨損性能試驗。

2.試驗對象: 載重量2噸以下汽車液壓盤式 / 鼓式制動器總成或制動片。



可執(zhí)行標準:Standard: QC/T 564、QC/T654、JASO C406、SAE J2522、EceR90 、ISO 11157、AK Master、VW-TL110等。

測試項目包括：

      制動器制動性能測試（包括效能、熱衰退、恢復、耐久、拖磨扭矩等）。

      摩托車制動器性能測試（選擇項目）

主要參數:

  主軸最高轉速：2,100r/min

  最大扭矩：4000Nm

  慣量范圍： 3.5-150 kg.m2

 HY202S
Purpose: To test the friction and wear performance of light, car, motorcycle brake and brake.
2. Test object: Vehicle hydraulic disc / drum brake assembly or brake sheet with a load of less than 2 tons.
Executable standards: Standard: QC/T 564, QC/T654, JASO C406, SAEJ2522, EceR 90, ISO 11157, AK Master, VW-TL110, etc..
Test items include:
Brake brake performance test(including performance, thermal decay, recovery, durability, drag torque, etc.).
Performance test of motorcycle brake(select item)
Main parameters:
Maximum speed of spindle: 2,100r / min
Maximum torque: 4000N M
Inertial range: 3.5-150 kg.m2
